FRP Pipe Hydro Tester - Convenient & Precise

Pipe hydro tester, as its name implies, is a device for testing the leakage performance and hydro pressure class of FPR pipes under certain pressure. Manufactured from the best grade raw material adopting advanced technology, our pipe hydro tester features reasonable structure, convenient operation, high efficiency as well as high versatility that suit various pipes in different diameters.

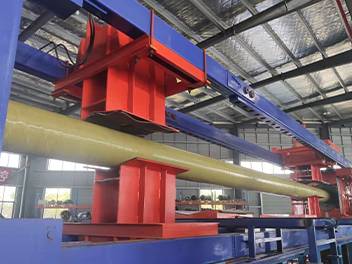

FRP pipe hydro tester

Composition:

• Water supply system.
• Upper and bottom longitudinal beam.
• Wall plate.
• Spigot and socket active plate.
• Support rod and tray.
• Fork bracket.
• Spigot and socket envelop cover.
• Electric control box.

Feature

• Seal shell cover adopts seal combined type.
• Bracket uses hydraulic lifting.
• The pressure pipe is installed on the pressure testing machine, which adopts hydraulic pressure to entry, dial-out and lock.
• Deliver and pick pipe automatically for easy operation.

Details:

• Capacity: 27.1kW.
• Suitable diameter of FRP pipes: DN250mm to DN2500mm.
• Rated pressure of hydraulic pumping station: 16Mpa.
• Rated discharge pressure of electric pump: 3.5Mpa.
• Flux of electric pump: 560L/h (high pressure); 1120L/h (low pressure).
• Centrifugal pump of clean water: Flux Q = 120m³/h; lift: H = 28m.
• Custom designs and sizes are also welcomed.

Hydro tester is ideal to test the leakage performance of various FRP pipes.
